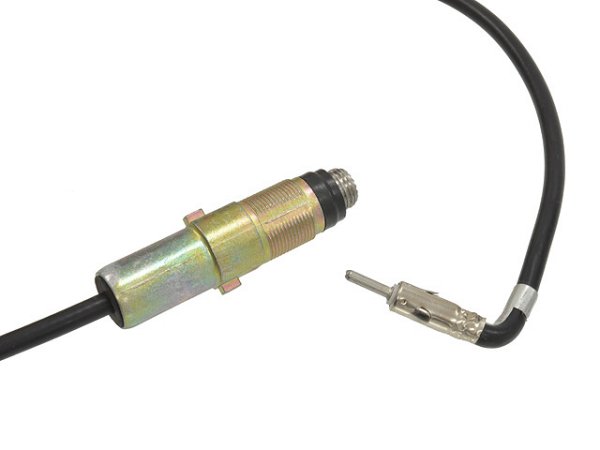

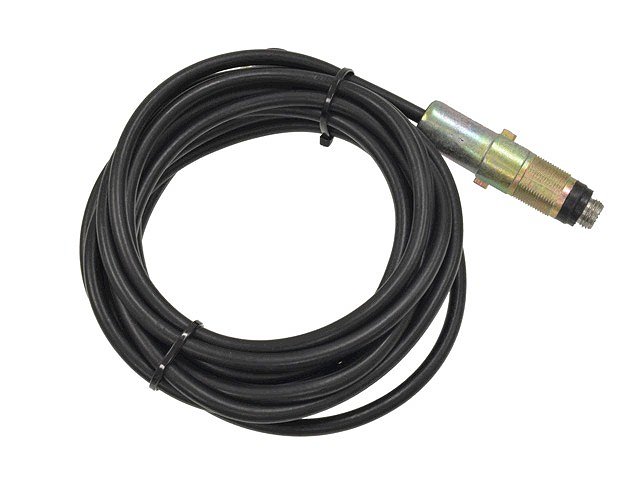

1969-1974 C3 Corvette Antenna Cable With Body

Having a properly function radio in your classic Corvettes to listen to your favorite music while cruising with the top down is an important part of owning and driving a Corvette if you videos not functioning it can make your drive less enjoyable this replacement antenna cable is a quick and easy way to get your radio back up and running making your cruising more enjoyable.If your radio is no longer working in your 1969 or 1974 Corvette you may have a broken antenna cable. Our reproduction antenna cable is 177 inches long and is an exact duplicate of the original. Due to the length of this cable, These cables contain a series capacitor, which reduces the antenna system's capacitance. This causes the antenna system capacity to fall within a range acceptable to the Delco radio receiver.

Notes

Once the cable is installed, removal may cause the female contact to become disengaged from the cable. In this occurs, carefully tuck the conductor wire and contact back in place. Do Not be alarmed by extra conductor wire, some slack is normally provided to allow for cables that are stretched during installation.

This 1969-1974E antenna cable was run under the dash, under the driver's side sill plate, over the wheel well, and back to the antenna.

Caution:

Do Not pass any current through the antenna cable, as you may short out the capacitor, leaving the cable inoperative! (Continuity must be checked with an instrument that measures capacity, Not an Ohmmeter)

Fitment: 1969, 1970, 1971, 1972, 1973, 1974 C3 Corvette
