2010-2015 Camaro Elite Oil Separator Catch Can
Keeping excess oil vapors out of your engines intake system is important for maximum performance. A quality catch can /oil separator will allow your emission equipment to function as intended without introducing harmful oil vapors back into the engine.
The PCV (Positive Crankcase Ventilation) system is designed to regulate and remove fumes from the engine crankcase and to alleviate crankcase pressure which could cause oil leaks or seal damage. The PCV system routes crankcase fumes into the intake manifold where they can be burned to eliminate harmful emissions into the atmosphere. The PCV valve controls the amount of crankcase flow volume depending on the engine's load. With large throttle openings (high engine loads), the more blow-by gases are produced, and the more the PCV system flows oil vapor into the intake manifold. A small amount of that ignited mixture leaks past the piston rings and ends up in the crankcase. This leakage is often referred to a "blow-by" or leakage past the pistons. Some of the oil mist and other products settle along the engine intake and over time form a "gunk". Our oil catch can collects the oil mist and condensed the fuel vapors while allowing "cleaner" gasses to pass back into the intake manifold.
Elite Engineering's PCV Oil Catch Can have a unique 3-chamber design to effectively separate oil from the crankcase vapors, thereby eliminating all negative effects of excessive intake system oil contamination. Oil vapor from the crankcase enters the 1st - Inlet/Filtration chamber where it is slowed down and caught in the stainless steel mesh, it then moves onto the 2nd - Transition/Diffusion chamber. The Diffusion chamber has a very specific set of holes to remove the oil and only let clean air vapor pass. Lastly, the vapor passes into the 3rd - Exit Chamber before it exits the Catch Can.
The Elite Engineering PCV Oil Catch Can is constructed of the finest materials inside and out. high-performance car owners insist on the best products that offer unsurpassed function as well as impressive visual enhancement. Our Catch Can does both! Our exclusive design incorporates optimum function and the finest materials, construction and finishes for maximum dependability.

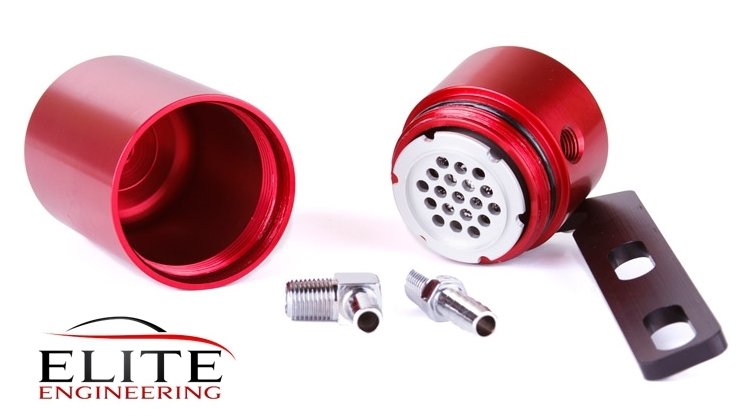

The 2.6" diameter by 6.0" long body is machined from billet 6061-T6 aluminum alloy, and then anodized in a variety of colors for a striking look. The internal condensing/filtration screen is stainless steel encased in an aluminum alloy housing designed for low flow restriction. The housing can be disassembled for screen inspection, cleaning or replacement if needed. The inlet and outlet hose fittings are brass, and threaded into the body and sealed with Teflon tape. Supplied hoses are fuel and oil vapor compatible (SAE 30R7 rated). The bottom catch can reservoir screws onto the top of the unit and is sealed with a built-in O-ring. Inspection and cleaning are easy by simply removing the bottom of the unit without disturbing the mounting system or hoses.
In keeping with our high-quality standards, all supplied mounting hardware and screws are stainless steel. The supplied custom machined mounting bracket is black anodized 6061-T6 aluminum and is attached to your specific vehicle with the hardware supplied.
Each Catch Can kit includes everything you need to install the system. Basic mechanical skills and common hand tools are the only things required.
Fitment: 2010, 2011, 2012, 2013, 2014, 2015 Camaro, SS, V6, ZL1
